Save money. Only use single one internet line to cover all of your property (living room, bedroom, basement, office, garage, gym house, swimming pool house, shop, barn, guest house, greenhouse, bunkhouse, boat house, coach house, family members’ house nearby within 20 km with line of sight)
One wifi network for your whole property with many benefits such as: a) you can use your office printer or watch TV from anywhere in your property; b) use WiFi Calling or facetime video call in anywhere in your property where the mobile phone signal (3G/4G/5G) can not reach; c) your own wifi network independent from your internet service provider, once you switch to another internet service provider, you don’t need to change anything inside your property (such as: wifi name, password); d) if you have two internet connection from two different internet service provider for backup, you don’t need to change anything in case one of them shut down.
Install smart system, such as: smart outdoor cameras, smart video doorbell, smart garage door opener, smart door lock, smart lighting to control any electrical device on your smart phone in anywhere at anytime in the world.
In the digital era of the Internet of Everything, the Internet has become an indispensable part of life. With the improvement of economic level, people have a higher pursuit of spiritual needs and life quality, and each family has higher requirements for the speed, stability, and coverage of the network. All these make the advent of the gigabit era an irresistible trend of the times. In the 10M era, fibre to the building(FTTB); in the 100M era, fibre to the home(FTTH); in the 1000M gigabit era, fibre to the room(FTTR).
FTTR is a new coverage mode of the home network in the gigabit era and is also another technological evolution and upgrade of home networking. In the past, fibre optic was used in the living room, but now it is covered in every room. With low latency, high quality, and high stability, FTTR achieves Wi-Fi 6 Gigabit coverage throughout the house.
To put it simply, if the Gigabit optical network is compared to a highway, FTTH is to pave the road to the door of the house, while FTTR is to pave the road to every room in the house. This effectively solves the problem of indoor WiFi network coverage, and at the same time solves the problem of WiFi getting stuck. The super-gigabit WiFi network with good stability covers every corner of the home and provides a five-star broadband experience–low latency, multiple connections, super high speed, and other features to meet the high-quality network needs of the whole family. People can enjoy VR movies, VR games, 4k videos, real-time meetings, and ultra-smooth online classes anytime, anywhere. A digital “Utopia” era is truly built with the balance of life and work.
FTTR network diagram:
AC+AP network diagram: Mesh network diagram:
What is Invisible Fibre Cable ?
Invisible Fibre Cable is a cutting-edge development in the world of fibre optics. It offers all the advantages of traditional fibre optic cables—such as high-speed data transfer, low latency, and reliable connectivity—while being designed to blend seamlessly into the environment. Made from ultra-thin, transparent materials, Invisible Fibre Cable can be installed on walls, ceilings, and floors without disrupting the aesthetic of a room.
Traditional fibre optic cables, while effective, can be unsightly and difficult to conceal. They often require extensive installation efforts, including drilling holes and running cables through walls, which can be both time-consuming and invasive. In contrast, Invisible Fibre Cable offers a solution that is both high-performance and aesthetically pleasing, making it an ideal choice for modern homes and offices where design and functionality are equally important.
The introduction of Invisible Fibre Cable is particularly significant in FTTR setups. In such systems, the goal is to provide high-speed internet access to every room without compromising the interior design. Invisible Fibre Cable allows for this by offering a nearly invisible solution that doesn’t interfere with the overall look of a space.
Key Features of FTTR Invisible Fibre Cable
Transparency
One of the most notable features of Invisible Fibre Cable is its transparency. Made from ultra-thin materials, the cable is designed to be nearly invisible once installed. This makes it an excellent choice for homes and offices where aesthetics are a priority. Whether it’s running along walls, ceilings, or floors, Invisible Fibre Cable blends seamlessly into the environment, maintaining the clean, uncluttered appearance of a room.
High-Speed Performance
Despite its delicate appearance, Invisible Fibre Cable does not compromise on performance. It is capable of delivering high-speed data transfer rates, ensuring that users experience fast and reliable internet connectivity. This makes it suitable for a wide range of applications, from streaming high-definition videos to online gaming and remote work.
Durability and Flexibility
Invisible Fibre Cable is designed to be both durable and flexible. The materials used in its construction allow it to withstand the rigors of installation and everyday use without losing its integrity. Additionally, the cable’s flexibility makes it easy to route around corners and obstacles, simplifying the installation process and ensuring that it can be used in a variety of environments.
Installation Ease
One of the key advantages of Invisible Fiber Cable is its ease of installation. Unlike traditional fiber optic cables, which may require drilling and extensive routing, Invisible Fibre Cable can be installed using simple adhesive methods. This not only reduces installation time but also minimizes damage to walls and other surfaces. The result is a clean, professional-looking installation that doesn’t disrupt the aesthetic of a space.
How Invisible Fibre Cable Works in FTTR Systems
Invisible Fibre Cable operates on the same principles as traditional fibre optic cables, where data is transmitted as light signals through glass or plastic fibre. The key difference lies in the materials used, which are engineered to be transparent and ultra-thin, allowing the cable to blend seamlessly with its surroundings.
In an FTTR system, Invisible Fibre Cable is typically run from a central distribution point to various rooms within a building. The cable is installed along walls, ceilings, or floors, where it remains virtually invisible. Once in place, it provides a direct fibre connection to each room, ensuring that high-speed internet is available wherever it is needed.
For example, in a residential setting, Invisible Fibre Cable can be installed in a living room, bedroom, and home office, providing each space with its own fibre connection. This setup ensures that all family members can enjoy fast and reliable internet, whether they are streaming movies, playing online games, or working from home.
The technology behind Invisible Fibre Cable involves the use of specially designed materials that allow light signals to pass through with minimal loss. These materials are engineered to be both transparent and highly efficient, ensuring that the cable can transmit data at high speeds without compromising on performance.
Benefits of Using Invisible Fibre Cable in FTTR
Aesthetic Appeal
One of the most significant benefits of Invisible Fibre Cable is its aesthetic appeal. Traditional fibre optic cables can be difficult to conceal and may disrupt the visual harmony of a space. In contrast, Invisible Fibre Cable is designed to be nearly invisible, allowing it to blend seamlessly with its surroundings. This makes it an ideal choice for homes and offices where appearance is important.
Enhanced Connectivity
Invisible Fibre Cable provides consistent high-speed internet access to every room in a building. This ensures that users can enjoy the same level of connectivity regardless of where they are, eliminating the frustration of slow or unreliable internet. Whether you’re streaming high-definition content, playing online games, or working remotely, Invisible Fibre Cable ensures a fast and reliable connection.
Comparison with Traditional Fibre Optic Cables
Visual Impact
The most significant difference between Invisible Fibre Cable and traditional fibre optic cables is their visual impact. Traditional cables are often visible and can be difficult to conceal, especially in homes and offices where aesthetics are a priority. In contrast, Invisible Fibre Cable is designed to be nearly invisible, making it a superior choice for those who want high-performance connectivity without compromising the appearance of their space.
Performance Metrics
In terms of performance, Invisible Fibre Cable offers comparable speed, latency, and reliability to traditional fiber optic cables. Users can expect the same high-speed internet and low-latency connections, making Invisible Fibre Cable a viable alternative for FTTR systems. Whether you’re streaming, gaming, or working, Invisible Fibre Cable ensures that you have the connectivity you need.
Cost Considerations
While Invisible Fiber Cable may be more expensive than traditional fiber optic cables due to its specialized materials and design, the added benefits of aesthetic appeal and ease of installation can outweigh the cost for many consumers and businesses. Additionally, the long-term benefits of a future-proof solution can provide significant value over time. When considering the overall value, Invisible Fibre Cable offers a compelling option for those looking to invest in a modern, high-performance networking solution.
Conclusion
FTTR Invisible Fibre Cable represents a significant advancement in networking technology, offering a solution that combines high performance with aesthetic appeal. By delivering high-speed internet to every room in a building without compromising the appearance of a space, Invisible Fibre Cable is quickly becoming the go-to choice for modern homes and offices. Whether you’re looking to future-proof your home, improve your internet connectivity, or simply enjoy a cleaner, more organized space, FTTR Invisible Fibre Cable offers a solution that meets all your needs.
Mesh WiFi is a whole home WiFi system built to eliminate dead zones and to provide uninterrupted WiFi throughout your home.Mesh systems enables devices in your network to have faster speeds, greater coverage, and a more reliable connection. While traditional routers broadcast WiFi from a single point, mesh WiFi systems have multiple access points.When one unit links to the modem, that unit becomes the main hub. The other units (called “nodes”) will capture and rebroadcast the router’s signal. The result is an efficient wireless network that provides a strong signal no matter where you are.
HARDWARE FEATURES Processor: Qualcomm 750MHz CPU, MIPS 74Kc Memory: 128 MB DDR2 RAM, 16 MB Flash Interface: 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE); 1 Reset Button Power Supply: Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27V DC Dimensions ( W x D x H ) 14.4 x 11.0 x 8.1 in. (366 x 280 x 207 mm) Antenna Gain 23 dBi Antenna Beamwidth 9° (Azimuth)/7° (Elevation) Protection 15 KV ESD Protection 6 KV Lightning Protection Enclosure Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design WIRELESS FEATURES Wireless Standards IEEE 802.11a/n/ac Wireless Speeds Up to 867 Mbps (80 MHz, Dynamic) Up to 400 Mbps (40 MHz, Dynamic) Up to 173.4 Mbps (20 MHz, Dynamic) Frequency 5.15–5.85 GHz Transmit Power Max. 27 dBm (Adjustable power by 1dBm) Operating Temperature: -40℃~70℃ Certification: CE, FCC, RoHS
AX3000 Dual-Band Wi-Fi 6- Enjoy binge-watching your favorite series in 4K with combined speeds of up to 3000 Mbps (574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz )†
Multiple mount options – Tabletop, wall mount, and pole mount
Working outdoor – Certified waterproof and dustproof
Powered over Ethernet – Provide both data connection and electric power with a single cable
Full Gigabit Ethernet – 2 × Gigabit WAN/LAN Ethernet ports provide solid internet access at high speeds.
Record and view in 1080p HD video during the day and with infrared HD night vision after dark.
Photo resolution
View captured images in 640 x 360 nHD
Camera frame rate
Up to 30 fps
Size
71 x 71 x 31 mm2.8 x 2.8 x 1.6 inches (70 x 70 x 41 mm)
Weight
5.0 oz (141 g)
Operating temperature
-20 to 45° C
Power
Battery: 2 AA 1.5V lithium metal batteries (non-rechargeable) Sync Module 2 power: 100-220V AC to 5V DC converter included. Battery life of up to two years, based on default settings. Battery life will vary based on device settings, use, and environmental factors.
Record and view in 1080p HD video during the day and with infrared HD night vision after dark.
Photo resolution
View captured images in 640 x 360 nHD
Camera frame rate
Up to 30 fps
Size
130 x 42 x 27 mm
Weight
91 grams
Power
Doorbell Power: 2 AA 1.5V lithium metal (non-rechargeable) batteries. Battery life of up to two years, based on default settings. Features may vary with configuration and settings. Battery life will vary based on device settings, use, and environmental factors.
Requirements
Always-on high-speed internet connection (such as broadband, fiber, or DSL). Wifi network: 2.4 GHz 802.11b/g/n.

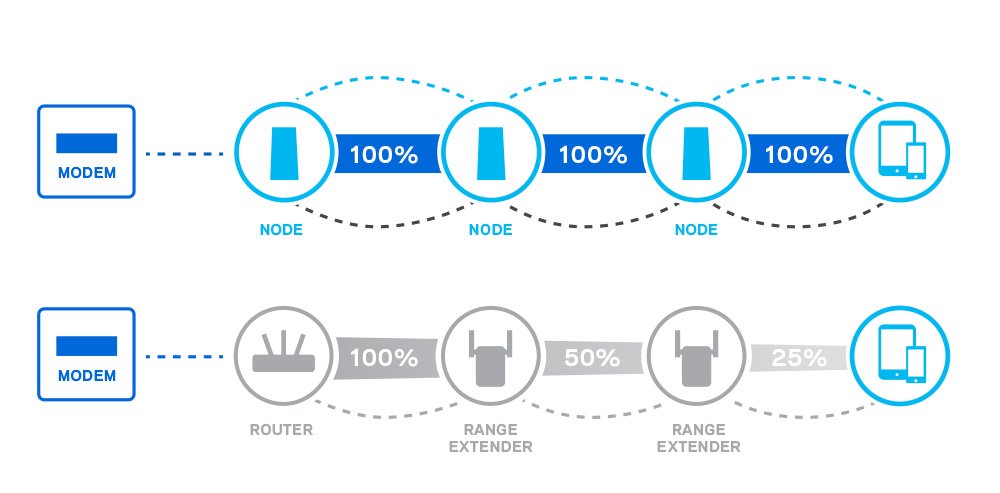

Traditional Single router come with a limited range. While adding a range extender/booster can help with this issue, but range extenders/Boosters/Bridge router/AC+AP sacrifice speed for connectivity. Mesh WiFi gives you the best of both worlds – so you can experience both powerful speeds and long-range connectivity.
Mesh WiFi devices comes with roaming protocols (to keep you on the same network) and mesh technologies such as self-healing and adaptive routing to keep your network stable.
Range extenders/Boosters/Bridge router/AC+AP require you to sign on to a new network manually in order to maintain a strong connection once you’re far enough away from your router.
Most range extenders/Boosters/Bridge router/AC+AP are set up under different networks; but with mesh networks there are no other networks to worry about. While each mesh node essentially functions as its own router, range extenders are merely duplicating the routers original signal.
Mesh WiFi is faster and more efficient at delivering a WiFi signal than a range extender.
If you do need some help extending your Wi-Fi, you’ll have to choose between a range extender and a mesh system. “Wi-Fi extenders typically connect to your existing wireless network, broadcast a new network name, and blindly relay traffic back to your wireless router,” “This usually means that you’ll see two network names: one network offered by your wireless router, and another network offered by the extender.”
You’ve probably seen this before, where a home’s network has a “SmithHouse” for upstairs and “SmithHouse_EXT” for downstairs. Your devices will often stay on one until it’s completely out of range. This means you’ll still have slow Wi-Fi at multiple points in your house unless you manually switch back and forth between networks as you move around, which is a huge hassle.
Repeating the entire Wi-Fi signal is also inefficient—that extender merely listens to every packet and rebroadcasts it. There’s no internal logic that sends packets to the right path.
More importantly, though, range extenders can often slow things down. Wireless is “half duplex,” which means a wireless device can’t send and receive information at the same time—every device on the same channel has to take turns talking, including devices on your neighbor’s Wi-Fi networks. Range extenders exacerbate this inefficiency, since they have to repeat every single thing they “hear”—like someone following you around all day, repeating everything you say before someone else can talk.
Finally, managing these extenders is often a pain. Many routers require you to go to a web page to alter settings or download updates, and if your extender is from a different brand, you’ll be dealing with two sets of software. In a lot of cases, that software can feel a bit complex and archaic, too.
There are exceptions to all of these points, of course. Some range extenders have more modern software and can overcome some of the bandwidth issues when paired with routers from the same manufacturers that are designed to be used together. But there’s no guarantee you’ll be able to do it with your existing router, and at that point, the line between extender and mesh system gets a bit blurry.
Do I have to purchase a new router to get mesh WiFi?
Yes. you need purchase at least 2 pack Mesh WiFi router to set up a mesh wifi network and integrated with your current Internet Router seamlessly.
Will Mesh WiFi work if I have brick, stucco, or concrete walls in my house?
Yes! Mesh WiFi systems will work in houses with these conditions. However, most routers (including mesh WiFi) may experience some drop in connectivity due to environmental factors.
Does mesh WiFi work with my older devices?
Yes it does! Mesh WiFi Routers will setup a second WiFi network in your home beyond your current Internet WiFi.
.Ports: 1G/2.5G bps WAN/LAN Ports, 1 Power Port · Buttons: 1 Reset button on the underside · Power Adapter Input: 100-240V~ 50/60Hz 0.3A · Power Adapter Output: 12V ⎓ 1A
Software of Mesh WiFi
.Working Mode: Router, Access Point · WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP · DHCP: Server, Client · Quality of Service: WMM · Firewall Security: SPI Firewall · Protocols: Supports IPv4 and IPv6 · Guest Network · Features: Parental Controls, QoS (Quality of Service), Reporting, Assisted Setup, Address Reservation, Port Forwarding, VLAN, IPv6, LED Control · Management: Local Management, Remote Managemen
Robust Parental Controls of Mesh WiFi
Manage content and control when each device can access the internet
.Profiles – Create a profile for each family member, and manage them individually · Content Filter – Four levels are available for filtering content, each catering to a specific age group · Time Controls – Set daily time limits for the total time spent online and block a person’s internet access between certain times · Pause the Internet – Pause a family member’s internet and resume it whenever you like
Where can I find Mesh WiFi products?
Many products are on the market. You can find mesh networking products on Home Depot, Best Buy, Costco and other placed where electronics are sold.
But it’s difficult to find out which model is the right choice for your current network situation. That’s why you need a technical consultant to help you.
Sales person of Best Buy/Costco always want to sell the top level product for maximum profit.
Do Not WASTE your money on WRONG products !
How much of Mesh WiFi for different property ?
Start from $500 to $2000 depend on situation of property
Yes! Wi-Fi is a main component for your outdoor Camera. outdoor camera requires a 2.4 GHz Wi-Fi Internet connection with a minimum of 2 Mb per second (2Mbps) upload speed (from your network to the internet).
How many camera can I added on ?
Each control module can added on up to 10 cameras. More control module can added on n*10 cameras.
What kind of batteries used inside the outdoor camera?
Outdoor cameras are powered by 2, Lithium metal, non-rechargeable 1.5v AA batteries. Battery powered cameras ship with batteries, and they’re easy to replace when the time comes. Simply open the battery compartment, take out the old batteries, and insert the new pair. The device powers up and regain communications without input from you.
Batteries should be replaced by Energizer Ultimate Lithium 1.5v AA batteries or their equivalent.
Do not use Lithium Ion ( Li-ion ) batteries as these will carry a higher voltage and may cause issues with your camera. Also avoid Alkaline based, or rechargeable batteries as they may cause issues with your camera.
How long do the batteries last ?
Battery life for Outdoor cameras is up to 2 years of standard use. We define “standard use” as: a total 5,882 seconds of live view, 43,200 seconds of motion-activated recording and 4,788 seconds of two-way talk; or said differently, 70 seconds per day, for two years.
Battery life varies based on device settings, type of use, heat, cold, or other environmental factors. These things can affect battery life:
Using Alkaline or re-chargeable batteries. (Specifically NOT recommended)
Slow internet connection
Extreme temperatures
Weak signal strength between camera and Wi-fi
Weak signal strength between camera and Sync Module
DO NOT use “Lithium Ion” (Li-Ion) batteries as these may cause issues with your camera.
How far from the camera can a person be seen ?
Using your camera at highest resolution, you will be able to view a person’s facial features about up to 30 feet from the camera. At 32 feet, facial features can not be made out clearly, but a person can be recognized. Beyond 32 feet, recognition depends on the lighting conditions. For example, night vision is provided by an Infra Red illuminator and will not normally show the same detail and clarity of a daytime image.
What is the maximum distance camera sense motion detection ?
The maximum motion detection range is approximately 20 feet for all cameras. Some factors that influence motion detection are the app sensitivity setting, camera placement, object size, infrared illumination and object temperature.
What is the camera resolution?
cameras can record up to 1080p resolution. The resolution is configurable in camera settings.
The camera frame rate ranges from 7.5 frames per second in low light situations to 30 frames per second in good lighting. The decreased frame rate in low light allows the camera to capture more light and present a clearer picture.
How long can I set the camera to record for ?
Clip length is customizable from 5 to 60 seconds.
How much data does a single clip use ?
A five-second motion clip with audio is roughly 750 KB of data.
This is important to note when you are viewing clips via cellular data rather than Wi-Fi.
